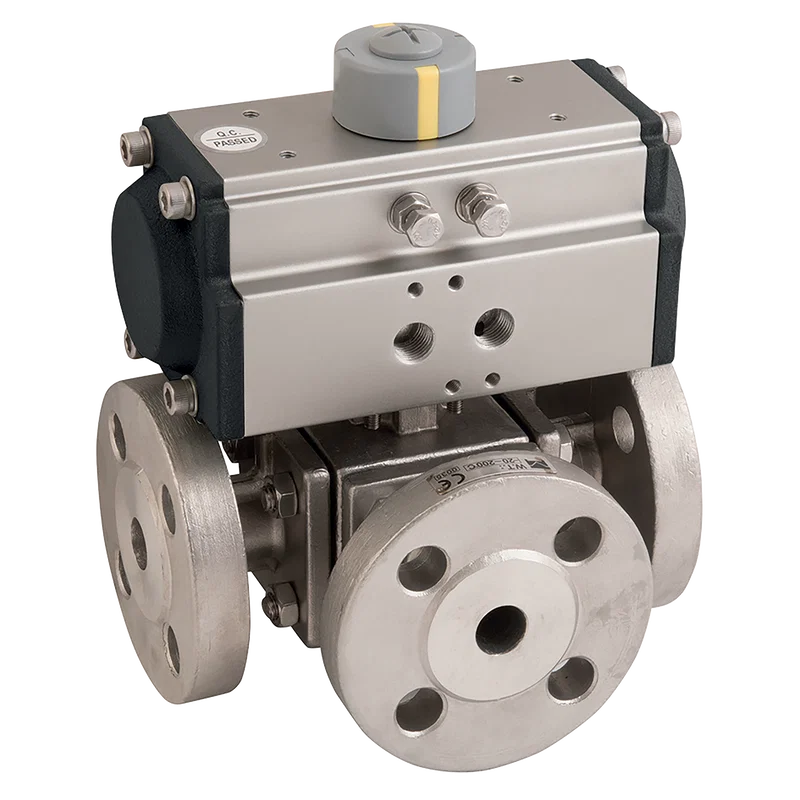

32059DL16 FB 3WLPORT SS BV
Product Code: HDA 2059DL16 11
£ 3,332.02 Ex. VAT
Out of stock3" PN16 Flange, 3 Way Ball Valve Fitted with a Pneumatic Actuator, L Port, Double Acting, Stainless Steel Valve Material, Viton Seal Material, Valve Working Temperature -20°C to +200°C, Actuator Working Temperature -20°C to +90°C, Valve Maximum Working Pressure 16 bar, Haitima
Delivery available
Please call for collection availability
| Seal Material: | Viton |
|---|---|
| Design: | 3 Way |
| End Connection: | Flanged PN16 |
| Size: | 3" |
| To Suit Flanges: | PN16 |
| Configuration: | L Port |
| Function: | Double Acting |
| Valve Material: | Stainless Steel |
| Valve Working Pressure bar: | 16 |
| Valve Working Temperature: | -20°C to +200°C |
| Actuator Working Temperature: | -20°C to +90°C |
Download Spec Sheets
