3/8 BSP BRS 3WT BV F/W HAITIMA DA ACT

Name: 3/8 BSP BRS 3WT BV F/W HAITIMA DA ACT
Brand: Haitima, Enolgas
SKU: HDA 1070-38

Product Code: HDA 1070-38

^£ 131.36 Ex. VAT

Out of stock

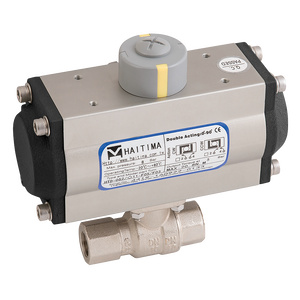

3/8" BSP Parallel, 3 Way Ball Valve Fitted with a Pneumatic Actuator, T Port, Double Acting, Nickel Plated Brass Valve Material, Elastomer Seal Material, Valve Working Temperature -20°C to +130°C, Actuator Working Temperature -20°C to +90°C, Valve Maximum Working Pressure 40 bar, Haitima, Enolgas

Delivery available

Please call for collection availability

Seal Material:	Elastomer
Design:	3 Way
End Connection:	BSPP
Size:	3/8"
Configuration:	T Port
Function:	Double Acting
Valve Material:	Nickel Plated Brass
Valve Working Pressure bar:	40
Valve Working Temperature:	-20°C to +130°C
Actuator Working Temperature:	-20°C to +90°C
origin:	GB
