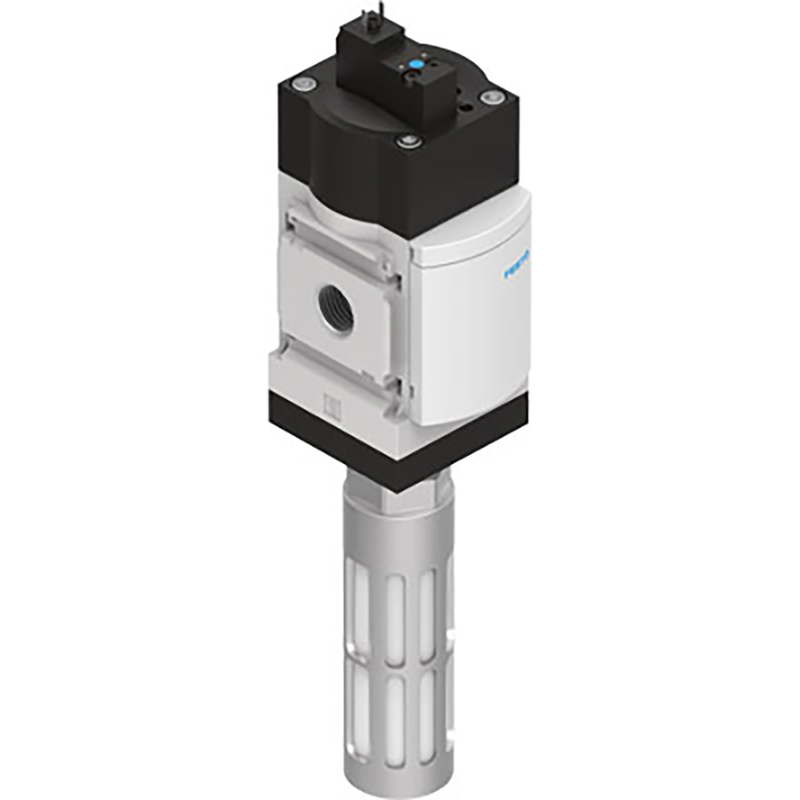

MS6-SV-1/2-C-10V24-S SOFT S/QU.EXH.V
Product Code: 8001469
£ 297.89 Ex. VAT
Out of stockSoft-Start/Quick Exhaust Valve MS6-Sv-1/2-C-10V24-S for the Soft-Start and Quick Exhaust of System Components. Series=MS, Size=6, Grid Dimension=62 Mm, Safety Function=(* Exhausting, * Prevention of Unexpected Start-Up (Pressurisation)), Performance Level (Pl)=(* Exhausting/Category 1, Performance Level C, * Prevention of Unexpected Start-Up (Pressurisation)/Category 1, Performance Level E), Festo
Delivery available
Please call for collection availability
Voltage: | 24V DC |
---|---|
Material: | Die-cast Aluminium |
Working Pressure bar: | 3 to 10 |
Working Temperature: | 0°C to +60°C |
Seal Material: | Nitrile |
Thread Gender A: | Female |
Thread Gender B: | Female |
Thread Size A: | 1/2" |
Thread Size B: | 3/4" |
Thread Type A: | BSPP |
Thread Type B: | BSPP |
Size: | 6 |
Flow LPM: | 5700 |
Width mm: | 62 |
Function: | 3/2 Normally Closed, Monostable |
Series: | MS |
Piston Rod Material: | Stainless Steel |
Actuation: | Electrical |
Watt: | 1.8 |
origin: | HU |
Download Spec Sheets
